Description
Take Your Phone Audio to Broadcast-Quality

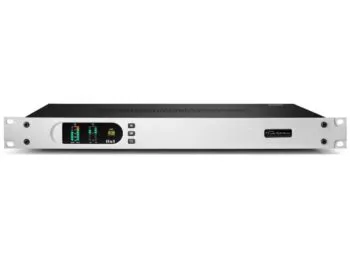

The Telos Hx1 Digital Hybrid represents the latest generation of telephone interfacing technology for live events, broadcasts, and podcast production. Whether you’re connecting a caller to your radio show or integrating remote participants into your live production, the Hx1 ensures top-tier audio clarity and reliable control—no matter the line conditions.
Advanced Features:
-
3rd-Generation Telos Adaptive Digital Hybrid technology for clear, consistent phone audio
-
Studio Adaptation + Feedback Control – Prevents echo when used with open speakers
-
Omnia AGC & Smart Leveler – Automatically adjusts caller volume for smooth sound
-
MIC/LINE Input Switch with analog XLR connections
-
Front-Panel Level Meters for send/receive levels and EQ visual feedback
-
Auto-Answer with Ring Count, on-hold, and disconnect signal detection
-
Supports international disconnect standards
-
XLR I/O, Analog and Optional AES Digital I/O
Built-In Processing:
-
High-pass filters, EQ, noise gate, pitch shifting, AGC, DDEQ (Digital Dynamic EQ)
-
Adjustable caller ducking, frequency shifter, and echo cancellation for pristine voice communication
Specifications Summary:
-
Frequency Response: 200Hz – 3400Hz
-
THD+N: < 0.5%
-
Signal-to-Noise Ratio: >90 dB
-
Analog I/O via XLR, optional AES3 digital module
-
Send and Receive level metering on front panel
-
GPI/O port (9-pin D-Sub) for remote control (ON, OFF, Ring, On-Air)
Perfect For:
-
Radio stations and podcast studios
-
Live events with remote call-in integration
-
Houses of worship or municipal broadcasts
-
Hybrid AV/broadcast control rooms
What’s Included:
-
1x Telos HX1 Digital Hybrid
-
1x Power cable
-
1x Quick Start Guide
-
Optional AES module (if selected)
