Description

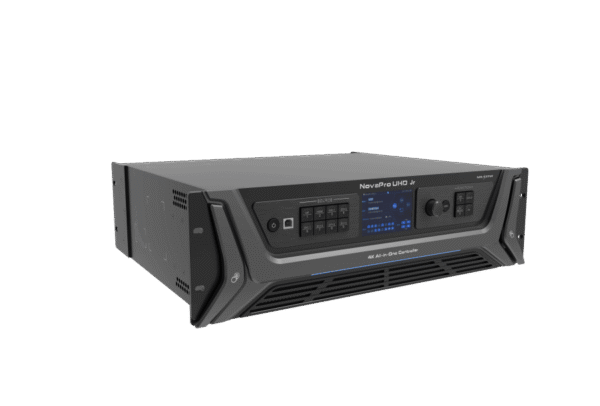

The NovaStar NovaPro UHD Jr is a cutting-edge all-in-one LED display controller engineered for seamless video processing and superior signal management. Supporting ultra-high-resolution video inputs up to 4K×2K@60Hz and 8K×1K@60Hz, this controller delivers outstanding image clarity and vivid color reproduction, perfect for fine-pitch and large LED screen applications.
Equipped with a wide array of input options including DisplayPort 1.2, HDMI 2.0, 4x DVI, and 12G-SDI with loop outputs, the NovaPro UHD Jr ensures flexible connectivity for diverse setups. Output is handled through 16 Neutrik Ethernet ports and 4 x 10G optical fiber ports, supporting up to 10 million pixels, making it perfect for concerts, exhibitions, conferences, and corporate events.
The unit features HDR support to boost brightness, contrast, and color fidelity, alongside DVI Mosaic capabilities to merge multiple DVI inputs into a single seamless image. Its low-latency processing reduces signal delay by 2 frames when paired with compatible NovaStar receiving cards, ensuring ultra-smooth playback and minimal lag.
Customize image scaling with pixel-precise, full-screen, or custom options, and set unique background colors or images to elevate your presentations. The NovaStar V-Can software simplifies configuration, remote control, and multi-screen synchronization, allowing quick presets and mosaic effects.
For larger setups, up to 4 NovaPro UHD Jr controllers can be linked, enabling seamless image stitching for expansive video walls. EDID management and user presets add further flexibility and ease of use.
Key Features:
-
Supports 4K×2K@60Hz and 8K×1K@60Hz video processing
-
Inputs: 1x DisplayPort 1.2, 4x DVI, 1x HDMI 2.0 (loop output), 2x 12G-SDI (loop output)
-
Outputs: 16x Neutrik Ethernet, 4x 10G optical fiber
-
Maximum loading capacity: 10,000,000 pixels
-
HDR output for enhanced image quality
-
DVI Mosaic for seamless multi-input merging
-
Low latency: reduces signal delay by 2 frames with compatible receiving cards
-
Flexible image scaling: full-screen, pixel-to-pixel, custom scaling
-
Custom background color/image settings
-
Multi-unit synchronization (up to 4 units linked)
-
EDID management and 10 user presets
-
Controlled via NovaStar V-Can software for remote setup and management
Applications:
-
Corporate events and conferences
-
Concert and stage productions
-
Large-scale exhibitions and trade shows
-
Fine-pitch LED display setups
-
Rental and fixed LED video wall installations
